The 65-point all cross type AF sensor, as in the case 61-point high-density reticular AF sensor, requires a wide focusing light flux covering a wide focusing area in order to increase the number of cross-type AF point to 65, but the size of the beam depends on the lens. The incorporation of intelligent viewfinder II in EOS 7D Mark II have made it possible to display different AF points depending on the lens, and so the 65-pioint AF system can fully exploit the incoming beam available with each lens and optimize the AF points, types and focusing patterns for each type of lens.

The 65-point all cross type AF sensor provides a maximum of 65-point cross-type AF sensor for lens with f/5.6 or larger aperture. The cross-type AF points are widely distributed throughout the whole AF area. Even for lens combination with a maximum aperture of f/8, the AF sensor still provides cross-type AF sensor at center.

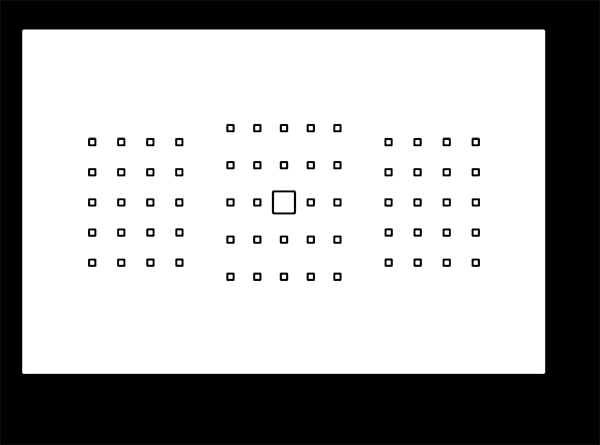

Distribution of AF sensor type

	f/2.8 compatible AF sensor (Offset Array)）
	f/5.6 compatible AF sensor (Offset Array)
	f/5.6 compatible AF sensor

Lens maximum aperture and Cross-Type AF points

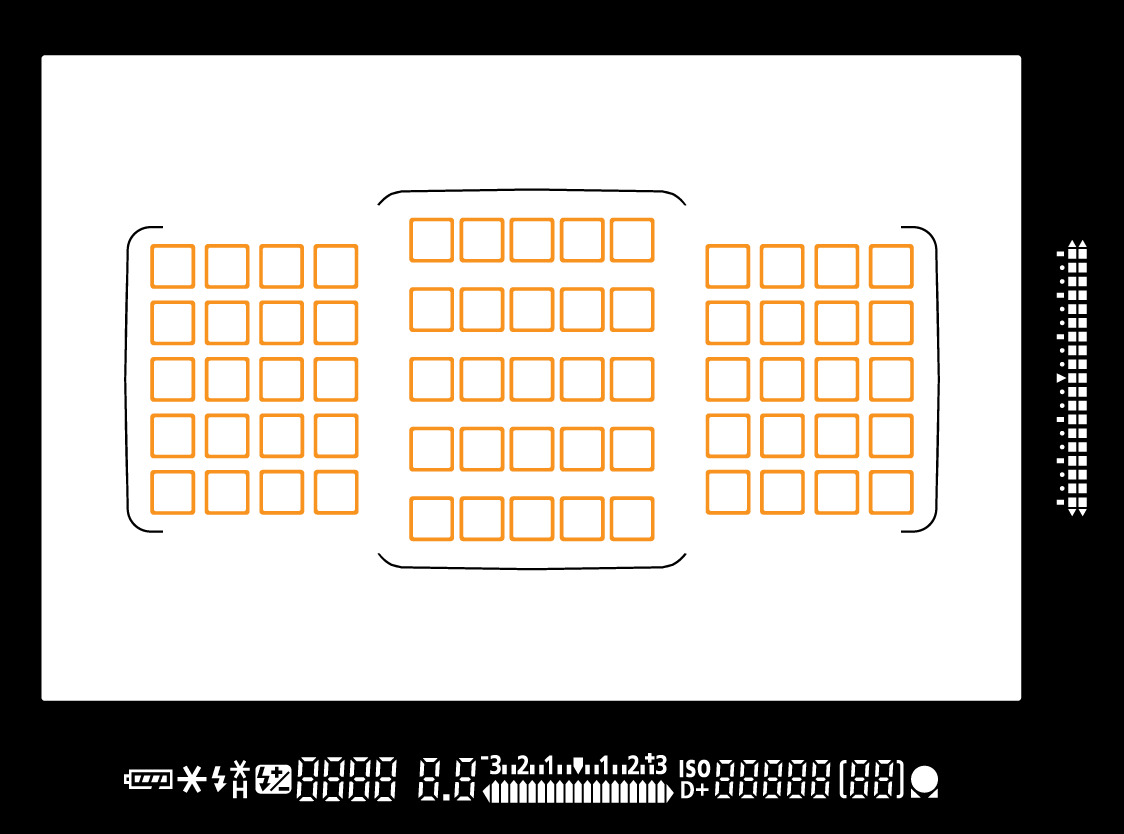

Maximum aperture of f/2.8 or faster For lens with a maximum aperture of f/2.8 or "faster", 1 extra high-precision diagonal cross-type AF points are available at center AF point, making it a dual cross-type AF sensor with the original AF cross type sensor f/2.8 Dual cross-type AF point f/5.6 Cross-type AF point Maximum aperture of f/5.6 65 cross-type AF points can be used with lenses having an maximum aperture between f/2.8 and f/5.6, expanding the flexibility of different lenses. f/5.6 Cross-type AF point Effective maximum aperture of f/8 AF is still possible at the center AF point with cross-type coverage when effective maximum aperture for a lens combination is at f/8. For many nature and wildlife photographers, this expands their shooting possibility f/8 Cross-Type AF Point f/8 Vertical AF Point (Cannot be manually selected) f/8 Horizontal AF Point (Cannot be manually selected)

Lenses and AF point types and distributions
The number of usable AF points on 65-point AF System will differ depending on the lens. The lenses are classified into 7 groups from A to G. When using a lens from Group F to H, fewer AF points will be usable. The camera only shows AF points and pattern that can be used with the lens currently attached in the Intelligent Viewfinder II. In addition, non cross-type points flash on and off during AF point selection in viewfinder, users don’t need to think twice about selecting the AF points.

Non cross-type AF points flash on and off in viewfinder during AF point selection

Lenses and AF Group

f/2.8 Dual Cross-type AF point f/5.6 Cross-type AF point f/5.6 Vertical AF point (Sensitive to horizontal line) f/5.6 Horizontal AF point (Sensitive to vertical line)

Group A 65 Cross-type AF points (Including 1 Dual Gross-type AF points) EF 14mm f/2.8L II USM EF 50mm f/1.8 STM EF 400mm f/2.8L IS II USM EF 14mm f/2.8L USM EF 50mm f/1.8 II EF 400mm f/2.8L IS USM EF 15mm f/2.8 Fisheye EF 50mm f/1.8 EF 400mm f/2.8L II USM EF 20mm f/2.8 USM EF 85mm f/1.2L II USM EF 400mm f/2.8L USM EF 24mm f/1.4L II USM EF 85mm f/1.2L USM TS-E45mm f/2.8* EF 24mm f/1.4L USM EF 85mm f/1.8 USM TS-E90mm f/2.8* EF 24mm f/2.8 IS USM EF 100mm f/2 USM EF 16-35mm f/2.8L II USM EF 24mm f/2.8 EF 135mm f/2.8 (Softfocus) EF 16-35mm f/2.8L USM EF 28mm f/1.8 USM EF 135mm f/2L USM EF 17-35mm f/2.8L USM EF 28mm f/2.8 IS USM EF 135mm f/2L USM + Extender EF 1.4x EF 20-35mm f/2.8L EF 28mm f/2.8 EF 200mm f/1.8L USM EF 24-70mm f/2.8L II USM EF 35mm f/1.4L II USM EF 200mm f/1.8L USM + Extender EF 1.4x^ EF 24-70mm f/2.8L USM EF 35mm f/1.4L USM EF 200mm f/2.8L II USM EF 28-70mm f/2.8L USM EF 35mm f/2 IS USM EF 200mm f/2.8L USM EF 70-200mm f/2.8L IS II USM EF 35mm f/2 EF 200mm f/2L IS USM EF 70-200mm f/2.8L IS USM EF 40mm f/2.8 STM EF 200mm f/2L IS USM + Extender EF 1.4x EF 70-200mm f/2.8L USM EF 50mm f/1.0L USM EF 300mm f/2.8L IS II USM EF 80-200mm f/2.8L EF 50mm f/1.2L USM EF 300mm f/2.8L IS USM EF-S 24mm f/2.8 STM EF 50mm f/1.4 USM EF 300mm f/2.8L USM EF-S 17-55mm f/2.8 IS USM  Group B 65 Cross-type AF points EF 50mm f/2.5 Compact Macro EF 500mm f/4L IS II USM + Extender EF 1.4x EF 70-200mm f/2.8L IS II USM + Extender EF 2x EF 50mm f/2.5 Compact Macro + LIFE SIZE Converter EF 500mm f/4L IS USM EF 70-200mm f/2.8L IS USM + Extender EF 1.4x EF 100mm f/2.8 Macro EF 500mm f/4L IS USM + Extender EF 1.4x EF 70-200mm f/2.8L IS USM + Extender EF 2x EF 100mm f/2.8L Macro IS USM EF 500mm f/4.5L USM EF 70-200mm f/2.8L USM + Extender EF 1.4x^ EF 135mm f/2L USM + Extender EF 2x EF 600mm f/4L IS II USM EF 70-200mm f/2.8L USM + Extender EF 2x^ EF 180mm f/3.5L Macro USM EF 600mm f/4L IS II USM + Extender EF 1.4x EF 70-200mm f/4L IS USM EF 200mm f/1.8L USM + Extender EF 2x^ EF 600mm f/4L IS USM EF 70-200mm f/4L IS USM + Extender EF 1.4x EF 200mm f/2.8L II USM + Extender EF 1.4x EF 600mm f/4L IS USM + Extender EF 1.4x EF 70-200mm f/4L USM EF 200mm f/2.8L II USM + Extender EF 2x EF 600mm f/4L USM EF 70-200mm f/4L USM + Extender EF 1.4x EF 200mm f/2.8L USM + Extender EF 1.4x EF 600mm f/4L USM + Extender EF 1.4x^ EF 70-210mm f/3.5-4.5 USM EF 200mm f/2.8L USM + Extender EF 2x TS-E 17mm f/4L* EF 70-210mm f/4 EF 200mm f/2L IS USM + Extender EF 2x TS-E 24mm f/3.5L* EF 70-300mm f/4-5.6 IS USM EF 300mm f/2.8L IS II USM + Extender EF 1.4x TS-E 24mm f/3.5L II* EF 70-300mm f/4-5.6L IS USM EF 300mm f/2.8L IS II USM + Extender EF 2x EF 8-15mm f/4L Fisheye USM EF 70-300mm f/4.5-5.6 DO IS USM EF 300mm f/2.8L IS USM + Extender EF 1.4x EF 16-35mm f/4L IS USM EF 75-300mm f/4-5.6 IS USM EF 300mm f/2.8L IS USM + Extender EF 2x EF 17-40mm f/4L USM EF 75-300mm f/4-5.6 III USM EF 300mm f/2.8L USM + Extender EF 1.4x^ EF 24-70mm f/4L IS USM EF 75-300mm f/4-5.6 III EF 300mm f/2.8L USM + Extender EF 2x^ EF 24-105mm f/3.5-5.6 IS STM EF 75-300mm f/4-5.6 II USM EF 300mm f/4L IS USM EF 24-105mm f/4L IS USM EF 75-300mm f/4-5.6 II EF 300mm f/4L IS USM + Extender EF 1.4x EF 28-80mm f/2.8-4L USM EF 75-300mm f/4-5.6 EF 300mm f/4L USM EF 28-90mm f/4-5.6 II USM EF 100-200mm f/4.5A EF 300mm f/4L USM + Extender EF 1.4x EF 28-90mm f/4-5.6 USM EF 100-300mm f/5.6L EF 400mm f/2.8L IS II USM + Extender EF 1.4x EF 28-90mm f/4-5.6 III EF 100-300mm f/5.6 EF 400mm f/2.8L IS II USM + Extender EF 2x EF 28-90mm f/4-5.6 II EF 100-400mm f/4.5-5.6L IS II USM EF 400mm f/2.8L IS USM + Extender EF 1.4x EF 28-90mm f/4-5.6 EF 100-400mm f/4.5-5.6L IS USM EF 400mm f/2.8L IS USM + Extender EF 2x EF 28-105mm f/3.5-4.5 II USM EF 200-400mm f/4L IS USM Extender 1.4x EF 400mm f/2.8L II USM + Extender EF 1.4x^ EF 28-105mm f/3.5-4.5 USM EF 200-400mm f/4L IS USM Extender 1.4x + Extender EF 1.4x EF 400mm f/2.8L II USM + Extender EF 2x^ EF 28-135mm f/3.5-5.6 IS USM EF 200-400mm f/4L IS USM Extender 1.4x: With built-in Ext. 1.4x EF 400mm f/2.8L USM + Extender EF 1.4x^ EF 28-200mm f/3.5-5.6 EF-S  60mm f/2.8 Macro USM EF 400mm f/2.8L USM + Extender EF 2x^ EF 28-200mm f/3.5-5.6 USM EF-S  15-85mm f/3.5-5.6 IS USM  EF 400mm f/4 DO IS II USM EF 28-300mm f/3.5-5.6L IS USM EF-S  17-85mm f/4-5.6 IS USM EF 400mm f/4 DO IS II USM + Extender EF 1.4x EF 35-105mm f/3.5-4.5 EF-S  18-135mm f/3.5-5.6 IS EF 400mm f/4 DO IS USM EF 35-135mm f/3.5-4.5 EF-S  18-135mm f/3.5-5.6 IS STM EF 400mm f/4 DO IS USM + Extender EF 1.4x EF 50-200mm f/3.5-4.5L EF-S  18-200mm f/3.5-5.6 IS EF 400mm f/5.6L USM EF 50-200mm f/3.5-4.5 EF-S  55-250mm f/4-5.6 IS EF 500mm f/4L IS II USM EF 70-200mm f/2.8L IS II USM + Extender EF 1.4x EF-S  55-250mm f/4-5.6 IS II EF-S  55-250mm f/4-5.6 IS STM Group C 45 Cross-type AF points 20 Vertical AF Points EF 11-24mm f/4L USM EF-S 10-22mm f/3.5-4.5 USM EF-S 18-55mm f/3.5-5.6 USM  EF 20-35mm f/3.5-4.5 USM EF-S 18-55mm f/3.5-5.6 IS STM EF-S 18-55mm f/3.5-5.6 III EF 35-135mm f/4-5.6 USM EF-S 18-55mm f/3.5-5.6 IS II  EF-S 18-55mm f/3.5-5.6 II EF 75-300mm f/4-5.6 USM EF-S 18-55mm f/3.5-5.6 IS EF-S 18-55mm f/3.5-5.6  EF 100-300mm f/4.5-5.6 USM EF-S 18-55mm f/3.5-5.6 II USM   Group D 25 Cross-type AF points 40 Vertical AF Points EF 24-85mm f/3.5-4.5 USM EF 80-200mm f/4.5-5.6 EF 35-350mm f/3.5-5.6L USM EF 90-300mm f/4.5-5.6 USM EF 55-200mm f/4.5-5.6 II USM EF 90-300mm f/4.5-5.6 EF 55-200mm f/4.5-5.6 USM   Group E 25 Cross-type AF points 20 Vertical AF Points EF 100mm f/2.8 Macro USM EF 28-80mm f/3.5-5.6 III USM EF 35-80mm f/4-5.6 PZ EF 800mm f/5.6L IS USM EF 28-80mm f/3.5-5.6 II USM EF 35-80mm f/4-5.6 II EF 1200mm f/5.6L USM EF 28-80mm f/3.5-5.6 USM EF 38-76mm f/4.5-5.6 EF 28-70mm f/3.5-4.5 II EF 28-80mm f/3.5-5.6 II EF 80-200mm f/4.5-5.6 USM EF 28-70mm f/3.5-4.5 EF 28-80mm f/3.5-5.6 EF 80-200mm f/4.5-5.6 II EF 28-80mm f/3.5-5.6 V USM EF 35-70mm f/3.5-4.5A EF-S 10-18mm f/4.5-5.6 IS STM EF 28-80mm f/3.5-5.6 IV USM EF 35-70mm f/3.5-4.5   Group F 15 Cross-type AF points 20 Vertical AF Points 10 Horizontal AF Points EF 180mm f/3.5L Macro USM + Extender EF 1.4x EF 35-80mm f/4-5.6 USM EF 22-55mm f/4-5.6 USM EF 35-80mm f/4-5.6 III EF 28-105mm f/4-5.6 USM EF 35-80mm f/4-5.6 EF 28-105mm f/4-5.6   Group G (f/5.6) 1 Cross-type AF points 2 Vertical AF Points 2 Horizontal AF Points EF 35-105mm f/4.5-5.6 USM EF 35-105mm f/4.5-5.6 Group G (f/8) 1 Cross-type AF points 2 Vertical AF Points 2 Horizontal AF Points EF 300mm f/4L IS USM + Extender EF 2x EF 500mm f/4L IS USM + Extender EF 2x EF 70-200mm f/4L USM + Extender EF 2x EF 300mm f/4L USM + Extender EF 2x EF 600mm f/4L IS II USM + Extender EF 2x EF 100-400mm f/4.5-5.6L IS II USM + Extender EF 1.4x EF 400mm f/4 DO IS II USM + Extender EF 2x EF 600mm f/4L IS USM + Extender EF 2x EF 100-400mm f/4.5-5.6L IS USM + Extender EF 1.4x EF 400mm f/4 DO IS USM + Extender EF 2x EF 600mm f/4L USM + Extender EF 2x^ EF 200-400mm f/4L IS USM Extender 1.4x + Extender EF 2x EF 400mm f/5.6L USM + + Extender EF 1.4x EF 800mm f/5.6L IS USM + Extender EF 1.4x EF 200-400mm f/4L IS USM Extender 1.4x: With built-in Ext. 1.4x + Extender EF 1.4x EF 500mm f/4.5L USM + Extender EF 1.4x^ EF 1200mm f/5.6L USM + Extender EF 1.4x^   EF 500mm f/4L IS II USM + Extender EF 2x EF 70-200mm f/4L IS USM + Extender EF 2x   f/8 Cross-Type AF Point f/8 Vertical AF Point (Cannot be manually selected) f/8 Horizontal AF Point (Cannot be manually selected)   ^Precise focus may not be achieved with AF for this combination. *Manual focus without tilt/shift

---
